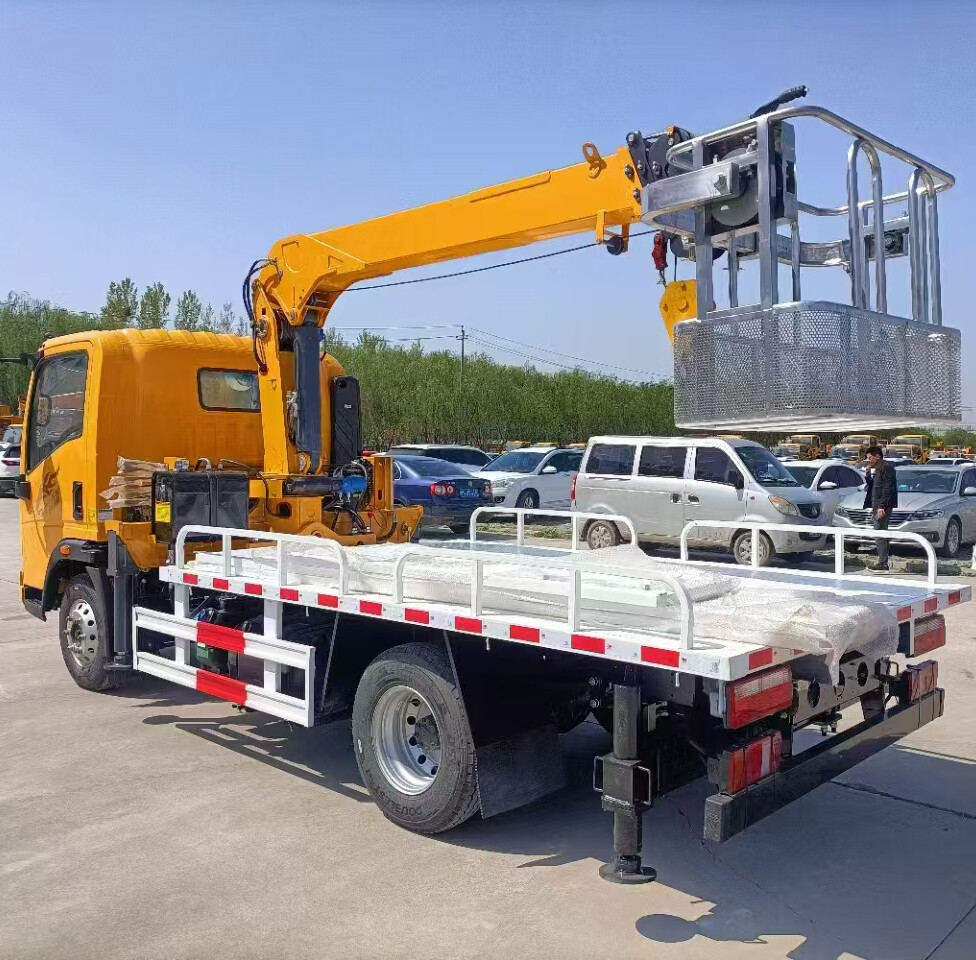

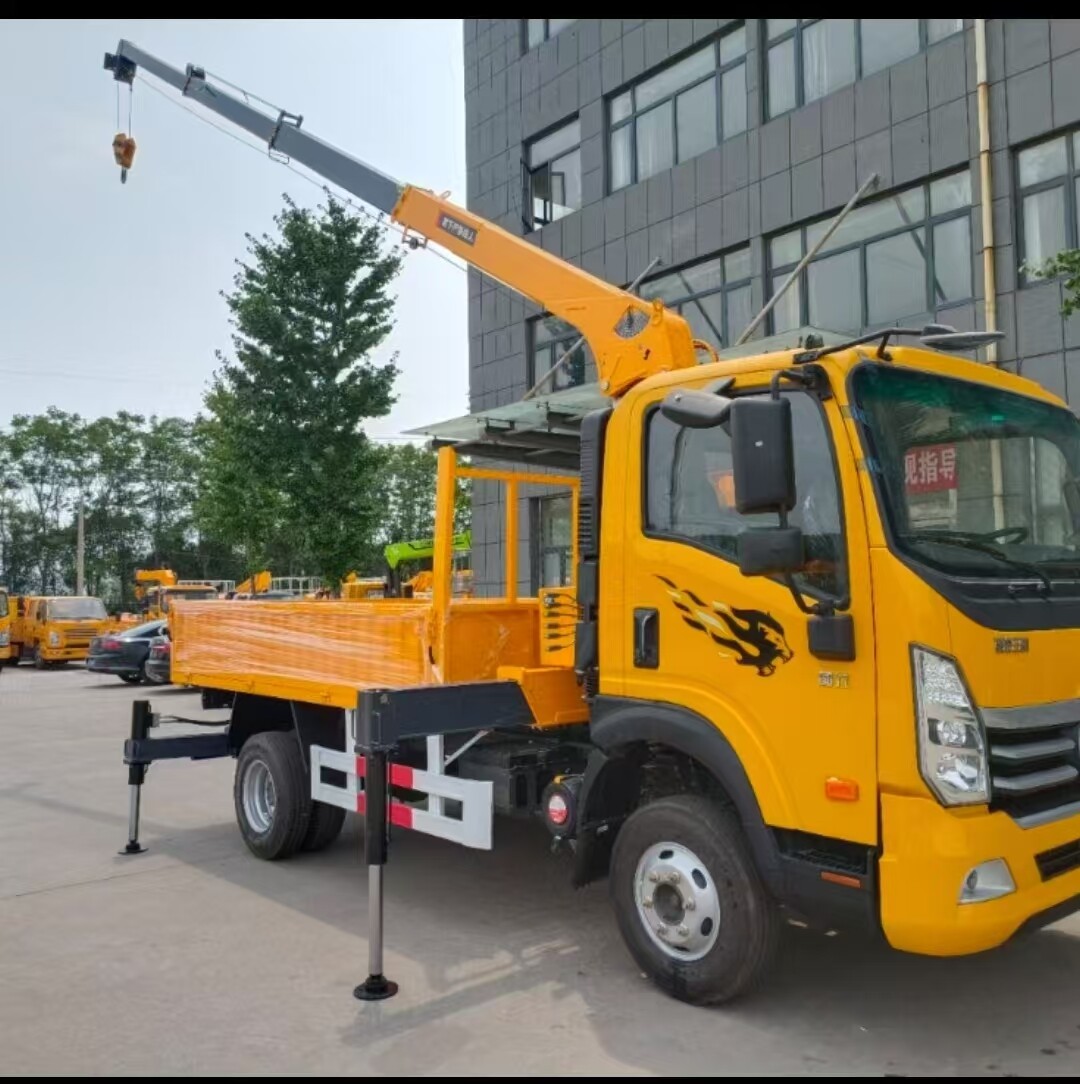

Foton Pilot M5 blue-plate truck-mounted crane
The Foton Pilot M5 blue-plate truck - mounted crane is a light - duty lifting and transportation vehicle with excellent performance. It is suitable for various scenarios such as urban and rural construction, road and bridge pipeline construction, and landscape greening projects. This vehicle adopts the Foton Times Pilot M5 chassis, with a 2000 - width luxury body and a comfortable interior. It is rich in configurations, including power steering, an electronic instrument panel, a factory - installed air - conditioner, etc. With a blue - plate design, it can be driven with a C - class driving license, featuring flexible operation and the ability to adapt to various narrow - space operations. The vehicle is equipped with a high - horsepower engine, providing strong power, and is matched with a suitable transmission, ensuring a smooth power output. At the same time, the equipped crane has good lifting capacity, and with a reasonable outrigger design, the lifting stability is high, making it an ideal model for small - scale lifting operations.
Classification
Truck Mounted Crane
PRODUCT DESCRIPTION
PRODUCT DISPLAY

Announcement Model: CLW5041JSQB6 truck - mounted crane transport vehicle

Chassis Model: BJ1043V9JDA - 01

Engine Power and Horsepower: Equipped with a Quanchai engine, usually 150 - 160 horsepower. For example, the Quanchai Q25A - 150E60 engine has a maximum power of 110KW.

Transmission: Wanliyang 5 - speed or 8 - speed transmission

Wheelbase: 2800mm

Tire Specification: 6.50R16 or 7.00R16 steel - wire tires

Cargo Box Dimensions: There are various specifications, such as 3250×2000×400mm, 3550×2000×550mm, etc.

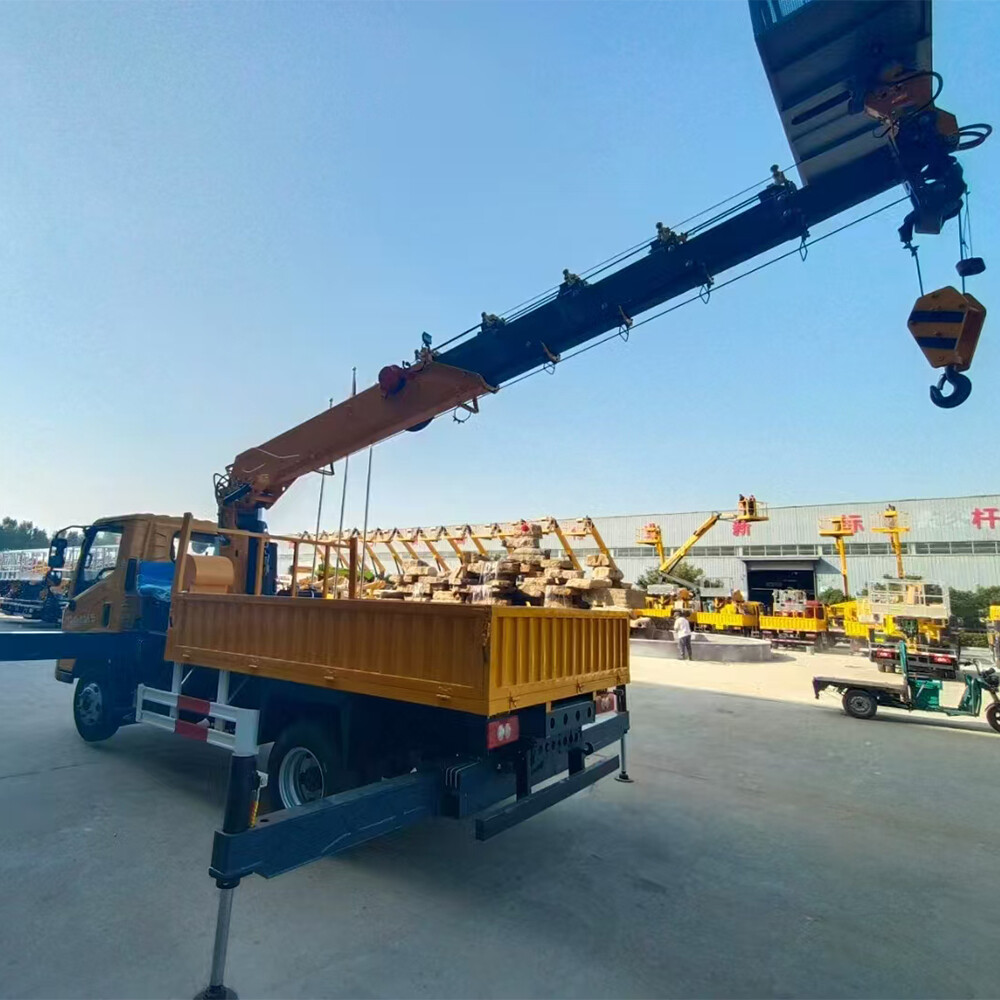

Crane Configuration: Can be equipped with a 3 - 7 - ton crane. Commonly, it is equipped with a Changxing 5 - ton four - section boom crane, with a boom length of 10.2 meters and a lifting height of 11.5 meters.

Overall Dimensions of the Vehicle: Length 5.995m, width 1.93m, height 2.66m

Outrigger Span: The horizontal span can reach 5.9m, and the longitudinal span can reach 3.5m.

Rear - Axle Load - Bearing: 4.5 - ton rear - axle

Emission Standard: National VI emission standard

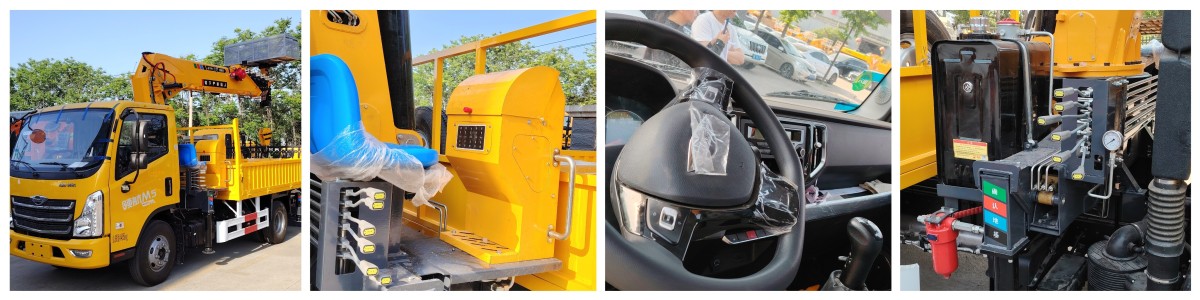

10.随车吊
