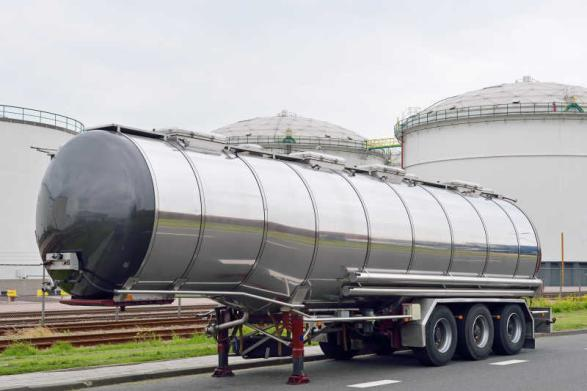

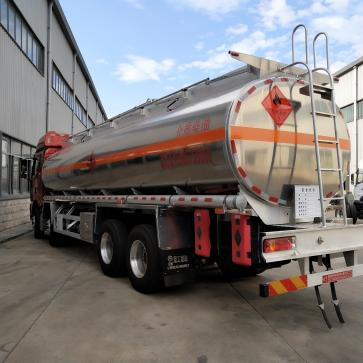

3 Axles Aluminum Alloy Tanker Semi-trailer
Sinotruk 3 axles Aluminum Alloy fuel tanker trailer is suitable for storage and carrying all kinds of fuel or oil. The compartments of the tanker can be customized according to your needs.
Classification
Semi-Trailer
PRODUCT DESCRIPTION
PRODUCT DISPLAY

Tank Capacity:40000 liters

Dimension:12650mm*2500mm*3900mm

Thickness:Tank body: 5mm End plate: 6mm

Manhole cover:3 sets with 2 breath valves

Discharge valve:3 Sets, 3 inch.

Emergency valve:4 inch bottom valve, 1 set

Discharge pipe:4 inch seamless steel tube

Axle:13Ton Axle

Tire:12R22.5 triangle brand 12units

King Pin:2.00 or 3.5 inch bolt-in king pin

Suspension:Mechanical suspension

Brake system:2 line pneumatic brake system.

Type 30/30 spring brake system on two axles.

ISO type air coupling at front of the semi-trailer. Optional ABS

Brake chamber:Six double chamber

Electrical system:24V,7 Pole plug. The whole set of LED lights ,include Tail lamp with turn signal, brake light & reflector, side lamp etc.

Colour and Marking:Color and pattern according to customer requirements

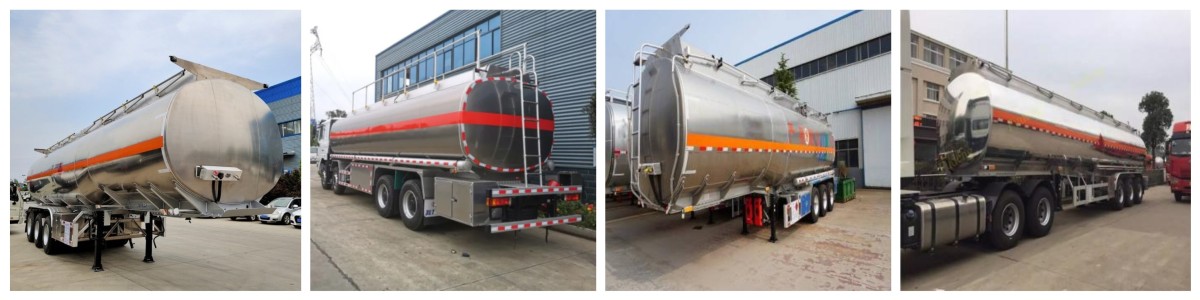

14.铝合金油罐拖车
