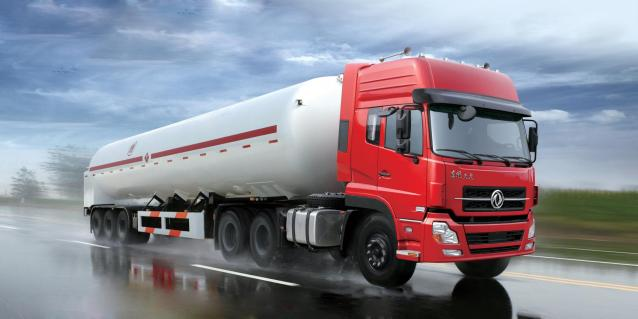

Liquefied natural gas tank transport vehicle
The 56.2 cubic LNG semi-trailer is a specialized transport vehicle designed for efficient and safe transportation of liquefied natural gas (LNG). As a clean energy carrier, LNG is stored in its liquid form at -162℃, reducing volume by 1/625 compared to gaseous state, which significantly saves storage and transportation costs.
The trailer features a double-layer tank structure with high vacuum multi-layer insulation to minimize evaporation loss, ensuring the static evaporation rate is ≤0.22 (LIN). The inner container, made of 30408 stainless steel, can withstand extreme low temperatures down to -196℃, while the outer shell (Q345R carbon steel) provides structural strength. With a maximum filling mass of 23,000 kg, it meets large-scale LNG transportation needs.
The trailer features a double-layer tank structure with high vacuum multi-layer insulation to minimize evaporation loss, ensuring the static evaporation rate is ≤0.22 (LIN). The inner container, made of 30408 stainless steel, can withstand extreme low temperatures down to -196℃, while the outer shell (Q345R carbon steel) provides structural strength. With a maximum filling mass of 23,000 kg, it meets large-scale LNG transportation needs.
Classification
Semi-Trailer
PRODUCT DESCRIPTION

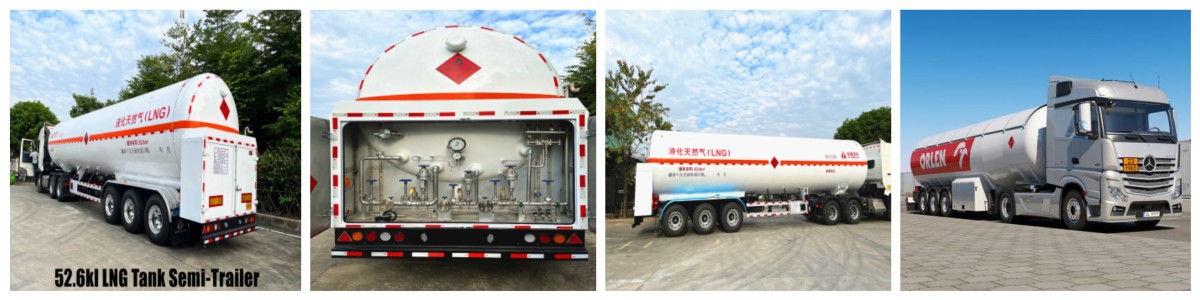

PRODUCT DISPLAY
Its overall dimensions (13,150×2,550×3,900 mm) and axle load distribution (22,600 kg at the kingpin, 15,500 kg at the rear axle) ensure stability during transportation. The design adheres to GB standards, with a speed limit of 80 km/h (20 km/h for turning) to guarantee safety. This semi-trailer is an essential equipment for the LNG supply chain, facilitating efficient and environmentally friendly energy transportation.
Tank Total Volume: 52.6 m³ (inner container) + 9.32 m³ (outer shell)
Working Pressure: 0.64 MPa (inner container); -0.1 MPa (outer shell)
Temperature Range: Working temperature -162℃ (inner container), -40~50℃ (outer shell); Design temperature -130℃ (inner container), 50℃ (outer shell)
Minimum Design Metal Temperature: -196℃ (inner container); -40℃ (outer shell)
Material: Inner container (30408 GB/T 24511); Outer shell (Q345R GB/T 713)
Medium: Liquefied Natural Gas (LNG)
Maximum Filling Mass: 23,000 kg
Interlayer Vacuum Degree: ≤0.08 Pa
Static Evaporation Rate: ≤0.22 (LIN)
Insulation Method: High vacuum multi-layer insulation
Oerall Dimensions: 13,150×2,550×3,900 mm
Curb Weight: 15,100 kg; Maximum Total Mass: 38,100 kg
