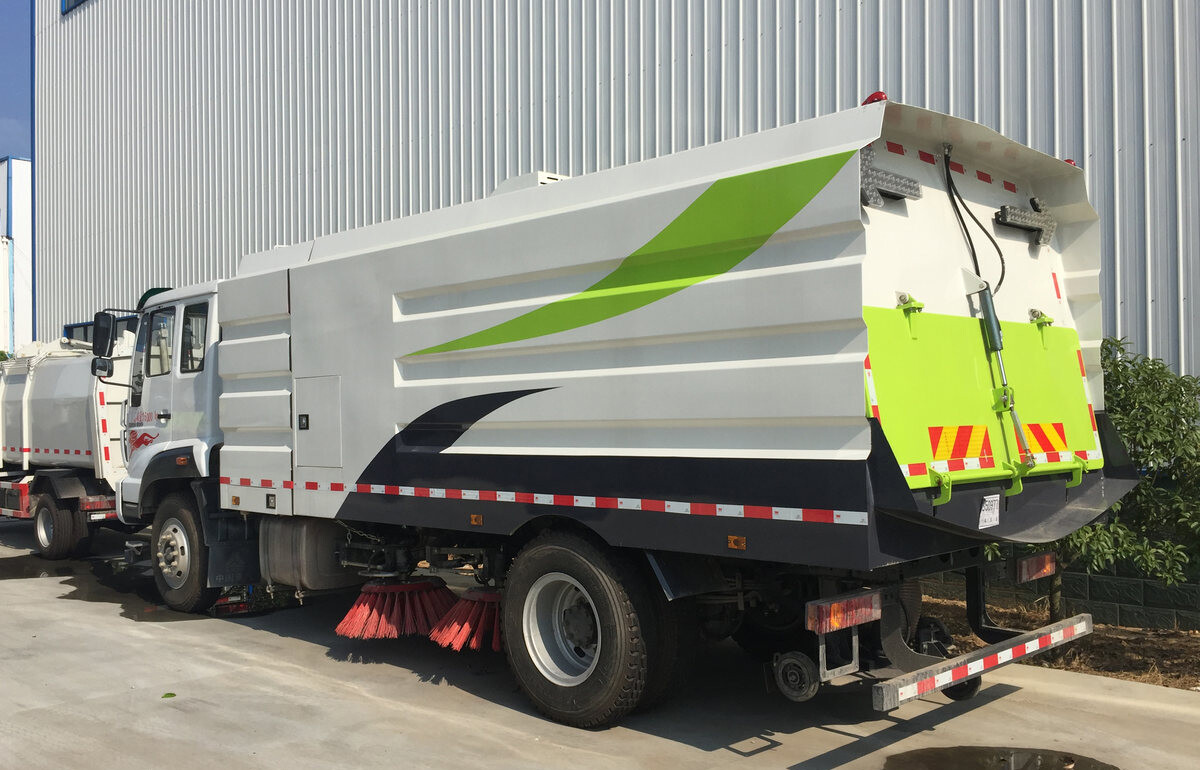

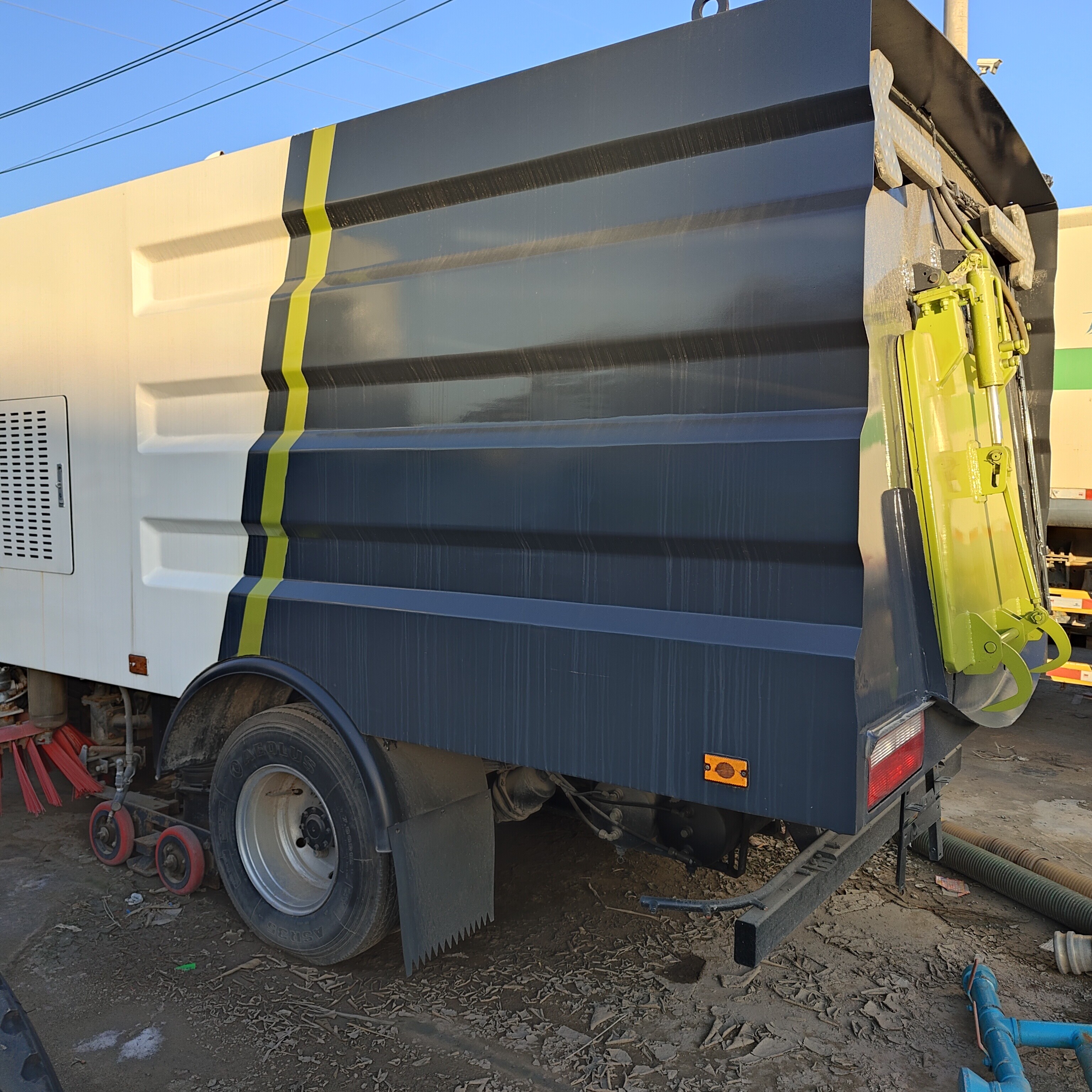

Qingling Isuzu Road Sweeper
The Qingling Isuzu Road Sweeper, developed by Chengli Special Automobile Co., Ltd., is a high-efficiency cleaning vehicle built on the Isuzu chassis, designed for comprehensive road cleaning. Equipped with a 120-horsepower Isuzu engine (National VI standard) and a 57 kW auxiliary engine, it delivers reliable performance with a cleaning width of 2.8-3.0 meters and an efficiency of over 96%, making it suitable for urban streets, highways, docks, squares, and industrial areas. Its 4 m³ stainless steel garbage bin and 1.5 m³ clean water tank ensure long continuous operation, while the middle-mounted four brushes and wet dust removal system effectively reduce dust during cleaning.
Classification
Road Sweeper
PRODUCT DESCRIPTION

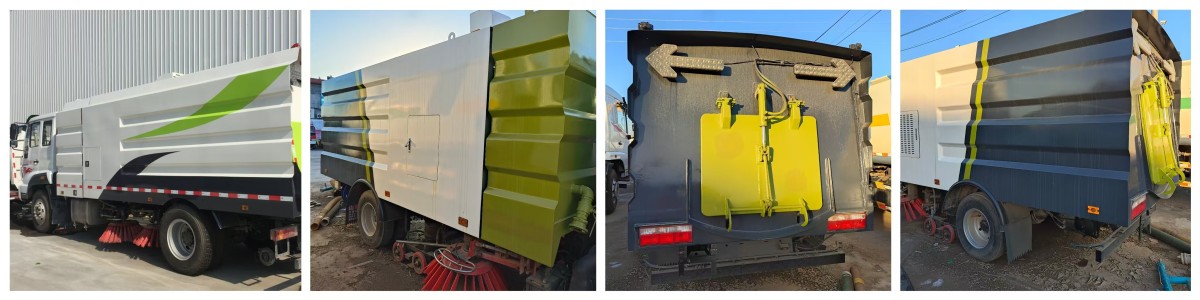

PRODUCT DISPLAY
Product Name: Qingling Isuzu Road Sweeper
Overall Dimensions: 5850, 5950, 6190 × 1990 × 2450, 2590 mm (length × width × height)
Gross Mass: 7300 kg
Rated Mass: 2270 kg / 2020 kg
Curb Mass: 4900 kg / 5150 kg
Chassis Parameters: Chassis model QL1070BUHACY; 2 axles; wheelbase 3360 mm; tire specification 7.00-16 14PR / 7.00R16 14PR; front/rear track 1504 mm / 1425 mm
Engine Parameters: Model 4KH1CN6LB (produced by Qingling Isuzu (Chongqing) Engine Co., Ltd.); displacement 2999 ml; power 88 kW (120 horsepower); National VI emission standard
Cleaning Performance: Cleaning width 2.8-3.0 m; cleaning efficiency ≥ 96%; maximum cleaning capacity 38000 m³/h; maximum suction particle size 110 mm
Tank Capacities: Clean water tank 1.5 m³; garbage bin 4 m³ (stainless steel material)
Auxiliary Equipment: Jiangling 57 kW auxiliary engine; Shandong Ruinuo motor; French Schneider control switches; Xiamen Nanchao automatic centrifugal clutch
Key Speeds: Maximum driving speed 95 km/h; cleaning speed 3-15 km/h

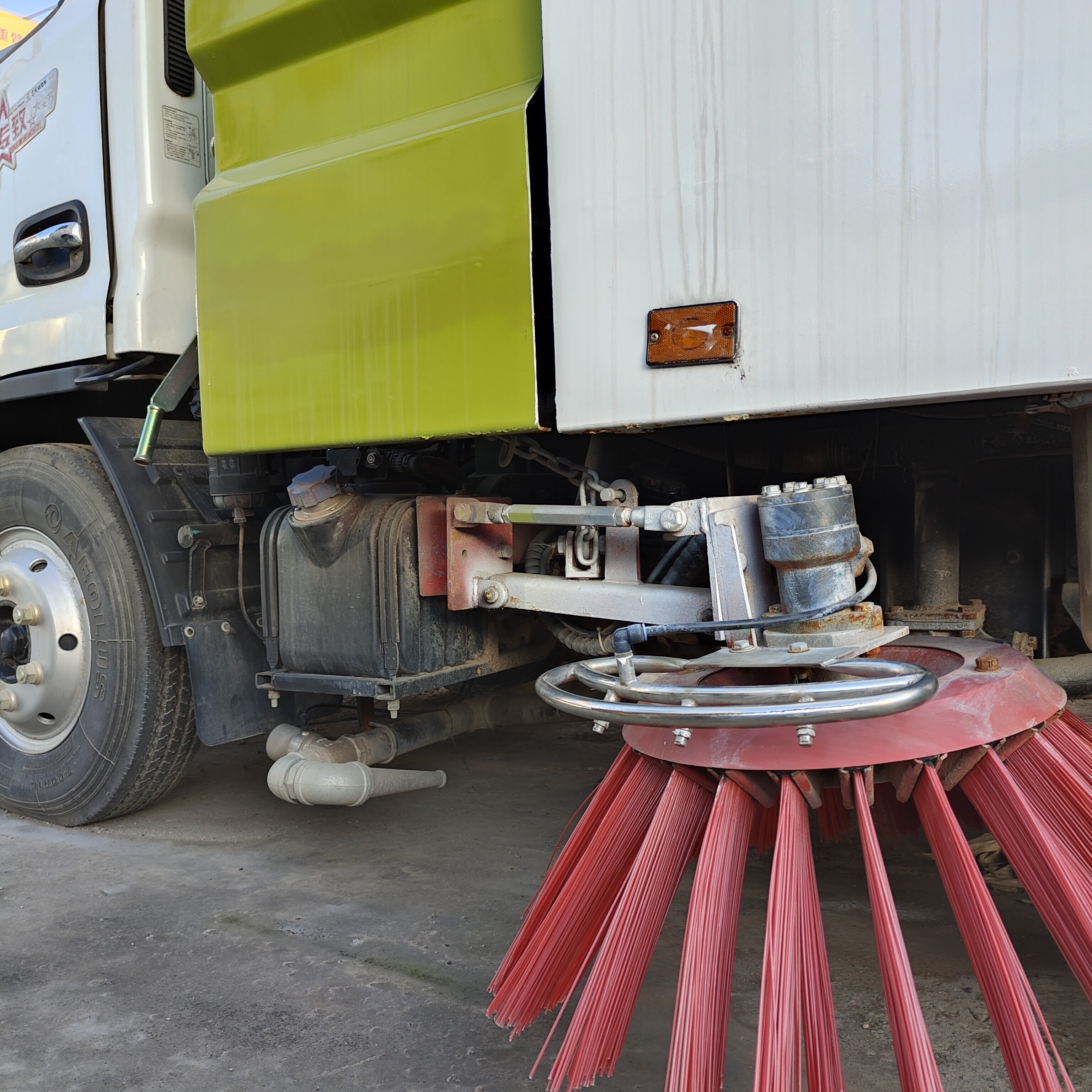

Special Features: Garbage bin dumping angle ≥ 45°; ABS system; middle-mounted four brushes; wet dust removal system
