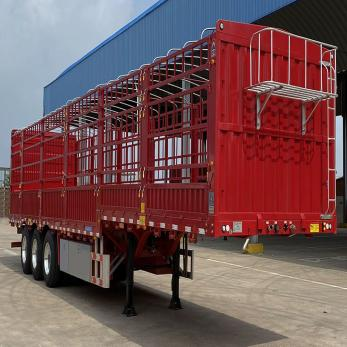

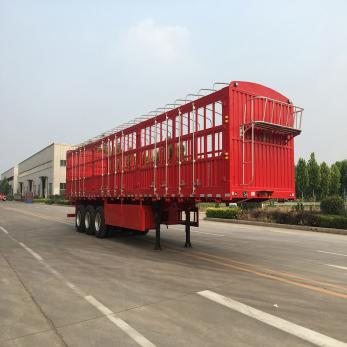

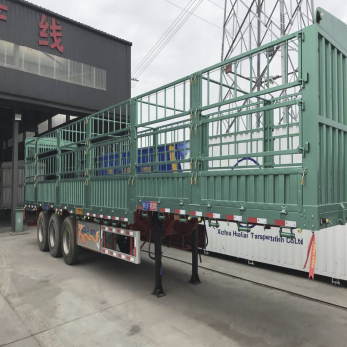

Stake semi-trailer
The cage semi-trailer refers to a semi-trailer with a cage structure installed at the cargo part. It is generally mainly used for the transportation of agricultural and sideline products and other light and bulky goods, and is one of the commonly used transportation tools in consignment stations and express delivery companies. This model is characterized by its wide range of applicable goods and convenient loading and unloading. The cage semi-trailer adopts a grid-type load-bearing design. The main frame is usually made of high-strength steel to achieve lightweight. A detachable roof is set on the top of the cargo box. The typical model length is between 9.5 and 13 meters.
Classification
Semi-Trailer
PRODUCT DESCRIPTION
PRODUCT DISPLAY
Vehicle length: 13 meters

Vehicle body width: 2.55 meters

Overall vehicle weight: 6.1 tons

Designed load capacity: 50 tons

Axle brand: Fuhua

Number of axles: 3

Axle load: 50

Wheel brand: Fuhua

Number of wheels: 12

Suspension: Copper core, maintenance-free

Tire brand: Chaoyang

Tire specification: 12R

Number of tires: 12

Frame material: Baosteel

Longitudinal beam height: 480 mm

Upper wing plate: 8mm

Lower wing plate: 10 mm

Abdominal plate: 6 mm

Base plate: 2 mm

Side beam: 14

Outriggers: Specifically designed for swinging and hanging

Toolbox: Fuhua Waterproof

Spare tire rack: High-end Funiu

Brake chamber: Wabco

ABS: Comi

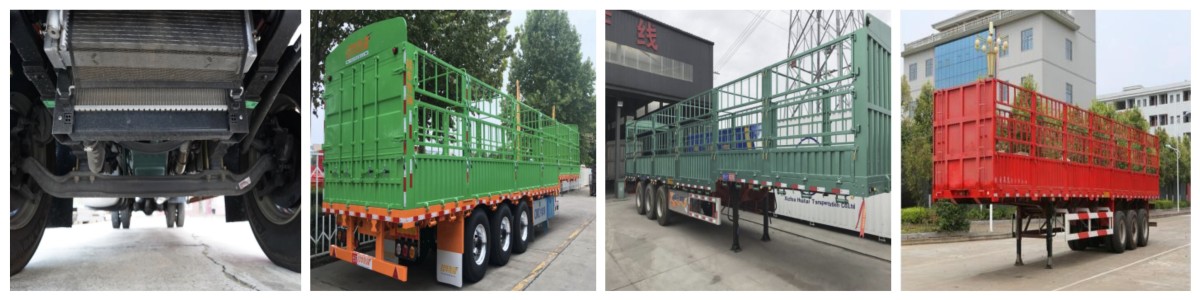

1.半挂车拼图
