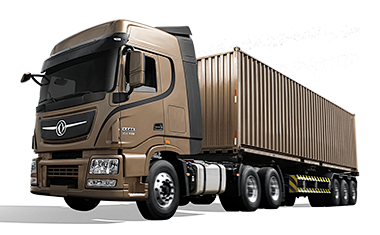

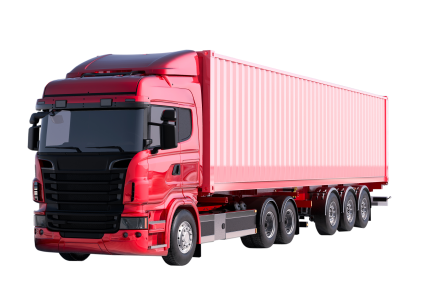

Container Semi-trailer
Container transport semi-trailers are semi-trailers that can transport containers and non-hazardous tank containers. It is mainly used in logistics systems that are compatible with ships, ports, shipping routes, highways, transfer stations, Bridges, tunnels, and multimodal transport. Used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength. When using containers to transfer goods, the goods can be directly loaded at the consignor's warehouse and unloaded at the consignee's warehouse. When changing vehicles or ships during the process, there is no need to remove the goods from the container for reloading. It is convenient for filling and emptying goods and meets the personalized demands of customers. According to the customer's requirements, the tooling is guaranteed, with stable quality and reliable performance.
Classification
Semi-Trailer
PRODUCT DESCRIPTION
PRODUCT DISPLAY

The self-weight of the container crane is 4,200kg

Maximum lifting capacity: 32,000 kg

Applicable box length: 12,191mm/ 40' (Optional / 45' : available upon request)

Applicable to 20ft / 40/45ft ISO container standard containers and high containers

Box body twist lock: 4 (6 optional)

Hydraulic oil tank: 90-liter oil tank

Hydraulic pump: 60L/min Italian plunger pump

Hydraulic working pressure: 20Mpa

Rated load capacity: 30,500 kg

The mass of the semi-trailer saddle is 16,000 kg

Curb weight: 9000 (kg)

Total mass: 40,000 (kg)

Shaft load distribution: 24,000 (kg)

Overall vehicle length: 13,375mm

Overall vehicle width: 2550mm

Overall vehicle height: 3750mm

Wheelbase: 6250+1310+1310mm

Track: 2090/2090/2090

Tire specification: 425/65R22.5
