Equipped with a full set of lifting cylinders, reliable axles , and mechanical suspension with multiple beam reinforcement, it delivers stable performance in various environments such as yards, open areas, and construction sites. Additional features like double cross beams for side wall reinforcement, double locks on the rear wall, and JOST brand kingpin and landing gear further ensure operational safety and reliability.

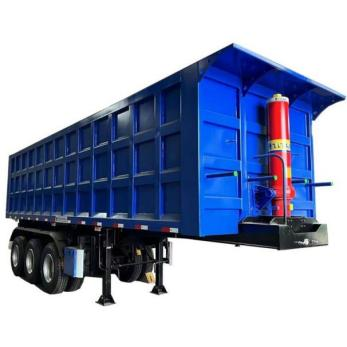

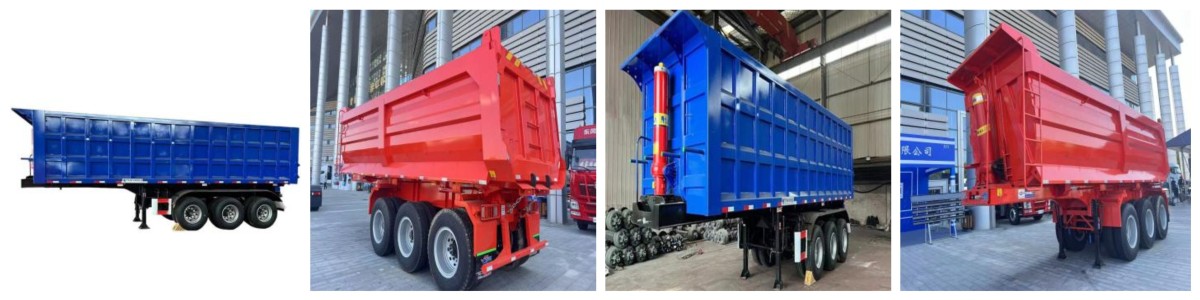

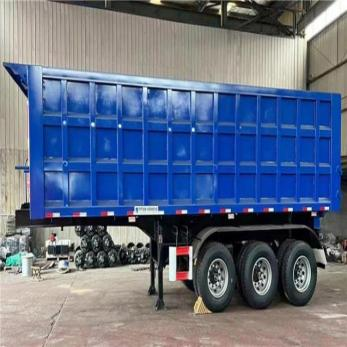

Type: Tri-axle semi-tipper trailer
Load Capacity: 40-45 tons
Overall Dimensions: 8600mm × 2500mm × 3950mm
Total Volume: 35 cubic meters
Body Material: T700 high-strength steel; side walls and bottom plate thickness 4mm
Lifting System: Full set of HYVA lifting cylinders
Axles: 13T/16T
Tire Specifications: 8.25R20 / 10.00R20 / 11.00R20 / 12R22.5
Suspension: Mechanical suspension with multiple beam reinforcement
Kingpin:2.0 or 3.5 inches (bolt-type or welded-type)
Landing Gear: 28-ton
