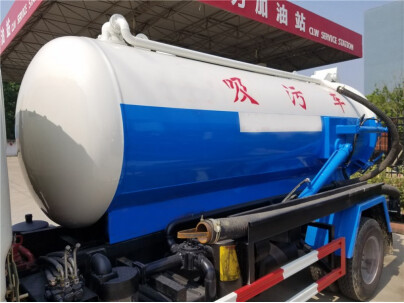

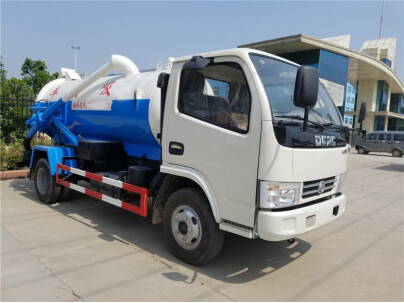

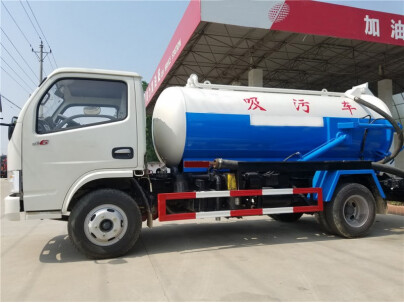

Sewage Suction Truck
The CLW5070GXWD5 sewage suction truck is a compact sanitation vehicle designed for collecting and transporting sludge, sewage, and sediments from rainwater wells, inspection ditches, and industrial pools. Built on the Dongfeng Xiaoduolika chassis, it features a 75 kW diesel engine (National V emission standard) and a 3.65-cubic-meter tank made of 5mm high-quality carbon steel, ensuring durability. Equipped with an efficient vacuum pump (with Italian technology), it enables self-priming and self-discharging functions, while the hydraulic rear cover and dual-cylinder dumping system simplify waste unloading. The truck is suitable for urban and rural sanitation, municipal departments, factories, and property communities, offering reliable performance in various harsh working environments. It comes with safety features like an anti-overflow valve and ABS, and supports customized configurations to meet specific user needs. Backed by comprehensive after-sales services, it provides a practical solution for small to medium-sized waste management tasks.
Classification
Sewage Suction Truck
PRODUCT DESCRIPTION
PRODUCT DISPLAY

Product Model: CLW5070GXWD5

Announcement Batch: 290

Gross Mass: 7,360 kg

Rated Load Mass: 3,450 kg / 3,130 kg

Curb Mass: 3,780 kg / 4,000 kg (approx.)

Tank Volume: 3.65 m³ (for liquid waste with a density of 900 kg/m³)

Overall Dimensions: 5,995 × 2,000 × 2,450 mm

Chassis Parameters: Chassis model EQ1070SJ3BDF; 2 axles; wheelbase 3,308 mm; tire specification 7.00R16; 6 tires

Engine Parameter: Model CY4BK551; displacement 3,707 ml; power 75 kW

Performance Metrics: Maximum speed 99 km/h; approach/departure angle 20°/14°; axle load 2,945 kg / 4,415 kg

Special Features: Equipped with vacuum pump (Italian technology); hydraulic rear cover; anti-overflow valve; rear self-flow outlet; ABS system (model ABS/ASR-24V-4S/4M)
